◎Five-step drum zoom design, easier to use, corneal endothelial cells can be observed under 40X
◎Maximum 14mm spot checks greater extent of disease
◎21.5mm high eye point more comfortable to check
◎All optical lens are made from import materials, carried out moisture proof, mould proof and coating process, which prove its good optical performance in different weather condition
◎High quality micro-positioning platform, easy to operate
◎Reserved digital upgrade interface, you can upgraded to a digital slit lamp
|

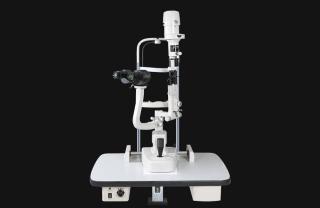

Model |
SLM-3X |
|
Microscope Type |
Galileo Parallel |
|
Magnifications change way |
Drum Five Magnifications |
|
Eyepiece |
12.5x |
|
Total Magnifications |
6X 10X 16X 25X 40X |
|
Diopter Adjustment |
-5D ~ +5D |
|
Slit Illumination |
Five Steps (Stepless Optional) |
|
Slit Width |
0-14mm Continuous |
|
Slit Height |
1-14mm Continuous |
|
Slit Angle |
0°-180° Adjustable |
|
Light Spot Diameter |
0.2mm,1mm,2mm,5mm,10mm,14mm |
|
Filter |
Heat Absorption;Redfree;Cobalt Blue |
|
Fixation |
Red LED |
|
Illumination Bulb |
LED |
|
Input Voltage |
110V/220V(±10%) |
|
Input Power |
60VA |
|
Diffuse Lens |
Yes |
|
Base Movement |
X: 100mm ± 3 |
